    High performance Mobile Asphalt Mixing Plant / Mobile Batching Plant

    Ask Lasest Price
    Brand Name : ZOOMLINE
    Model Number : ZAP-M40-160
    Certification : CE, ISO, EAC, EMC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets per month
    Delivery Time : about 30-40 days
    • Product Details
    • Company Profile

    High performance Mobile Asphalt Mixing Plant / Mobile Batching Plant

    New Design High Efficiency Mobile Asphalt Mixing Plant And Related Equipmentst

    Product description

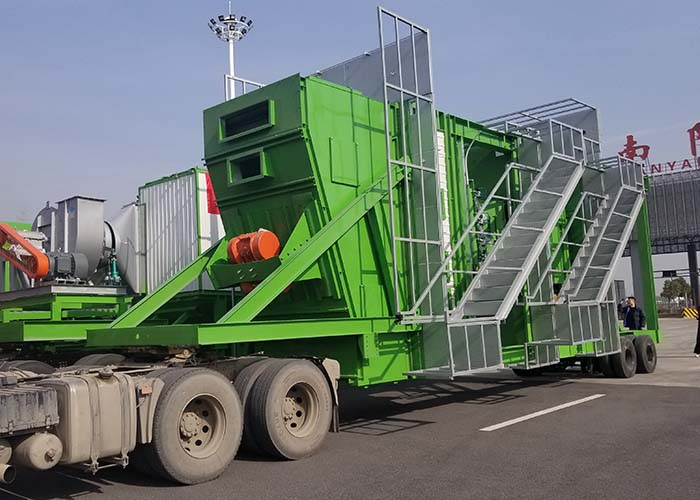

    Mobile asphalt mixing plant

    ZAP-M series series Mobile Asphalt Mixing Plant is Based on quickly installation and easily transportation consideration,it features modular design and compact structure. It has higher degree of pre-assembly. All the features make it faster,easier and more economical for installation,shipping,reset Main components are world famous brand. This brings stability,low power consumption and enviromental demand

    The whole disassembly and installtion job could be finished fast ,end users can save much labor cost and time. It is widely used for the construction of highway, bridge, and other infrastructure as well as suitable for daily road maintenance.


    Mobile asphalt mixing plant component

    1) Modular design, convenient and fast to move and install.
    2) Screening, hot storage, weighting are on one folding frame, can realize main tower "one truck to trail".
    3) Few transport vehicle, installation foundation need no special handle.
    4) Compact design, cover very small area.
    5) Accurate screening, weighting, batch mix can guarantee high quality.
    6) International classic quality control system, has long distance fault detect and maintain function.


    Main features of ZAP-M series mobile asphalt mixing plant


    Advantages of mobile asphalt mixing plant

    • Easily transortable
    • Easily assembling & disassembling
    • Landing legs with support bases to ensure adequate stability.
    • Low maintenance operation
    • Low energy consumption
    • Low emission
    • Saving time and cost of installation
    • Multi-fuel burner
    • Fully automatic controls


    Mobile asphalt mixing plant options

    • Asphalt mixture storage silo (mobile/stationary as optional)
    • Diesel, heavy oil, gas, coal or multi-fuel burners
    • Filler system (mobile/stationary as optional)
    • Bag house or water dust collector (mobile/stationary as optional)
    • Fiber additive system
    • Recycling asphalt plant
    • Bitumen tank and control room (mobile/stationary as optional)

    Technical parameters

    Technical parameters of ZAP-M asphalt continuous plant:

    Items

    ZAP-M80

    ZAP-M100

    ZAP-M120

    ZAP-M160

    Plant Capacity

    80t/h

    100t/h

    120t/h

    160t/h

    Cold Aggregate Feeding System

    Hopper capacity

    4 x 6.5m3

    4 x 6.5m3

    4 x 6.5m3

    5 x8m3

    Belt capacity

    100t/h

    120t/h

    140t/h

    180t/h

    Drying System

    Drying drum size

    1500x6600mm

    1500x6600mm

    1800x8000mm

    1900x9000mm

    Drying capacity

    80-100t/h

    100-120t/h

    120-140t/h

    160-180t/h

    Burner (oil)

    60-600kg/h

    100-1000kg/h

    100-1000kg/h

    140-1400kg/h

    Fuel consumption (oil)

    6.5-7kg/t

    6.5-7kg/t

    6.5-7kg/t

    6.5-7kg/t

    Mixing Tower

    Screen

    4 layer

    4 layer

    4 layer

    4/5 layer

    Aggregate weighing

    3x1000kg

    3x1500kg

    3x1500kg

    3x2000kg

    Bitumen weighing

    3x100kg

    3x200kg

    3x200kg

    3x200kg

    Filler weighing

    3x100kg

    3x200kg

    3x200kg

    3x200kg

    Mixer capacity

    1000kg

    1300kg

    1500kg

    2000kg

    Mixing cycle

    45s

    45s

    45s

    45s

    Dust Collecting System

    Bag house filtering

    380m2

    400m2

    500m2

    550m2

    Exhaust Fan power

    45kw

    55kw

    2x45kw

    2x55kw

    Asphalt Temperature

    140-180 ℃

    140-180 ℃

    140-180 ℃

    140-180 ℃

    Finished Asphalt Silo (Optional)

    30 ton

    30 ton

    30 ton

    60 ton

    Total Power

    -270kw

    -300kw

    -390kw

    -500kw


    *Plant capacity is base on standard working condition as followings:


    Atmospheric pressure

    760mmHg

    Ambient temperature

    20℃

    Material passing 40mm mesh

    100%

    Material passing 3mm mesh

    40%

    Material passing 74µm

    ≤7%

    Aggregate temperature at discharging end of drum dryer

    160℃

    Density of aggregate

    1650kg/m3

    Specific heat of aggregate

    0.21kcal/kg℃

    Filler content

    5%

    Bitumen content

    5%

    Sand content

    ≤40%

    Max.aggregate size

    ≤40mm

    Average moisture of cold aggregates

    ≤5%

    Cycle time per batch

    45s

    Diesel calorific value

    ≥10500Kcal/kg

    Heavy oil calorific value

    ≥9850Kcal/kg

    Nature gas calorific value

    ≥8000Kcal/Nm3

    Coal calorific value

    ≥5500Kcal/kg

    Company Information

    Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.

    Customers visit


    Packaging and Shipping

    Our Service

    Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

    ZOOMLINE Machinery adheres to service concept "everything for customers, creating value for customers, makes customers" demand as focus and achieves "exceed customer expectations, and beyond the industry standard" service goals with first-class speed, skills and attitude.
    We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.
