    80-160tph Mobile Strong mixing Asphalt Mixing Plant

    80-160tph Mobile Strong mixing Asphalt Mixing Plant

    Product description

    Mobile asphalt mixing plant

    ZAP-M series mobile batch asphalt mixing plant mainly used in the road construction of national road,main or middle road,city road,airport and bridge, transport and install conveniently.
    Mobility, efficiency, easily transportable mobile/portable batch asphalt mixing plant
    ZAP-M models mobile/portable wheeled batch asphalt mixing plant are available from 80TPH to 160TPH

    Technical parameters

    Technical parameters of ZAP-M asphalt continuous plant:

    ItemsZAP-M80ZAP-M100ZAP-M120ZAP-M160
    Plant Capacity80t/h100t/h120t/h160t/h
    Cold Aggregate Feeding System
    Hopper capacity4 x 6.5m34 x 6.5m34 x 6.5m35 x8m3
    Belt capacity100t/h120t/h140t/h180t/h
    Drying System
    Drying drum size1500x6600mm1500x6600mm1800x8000mm1900x9000mm
    Drying capacity80-100t/h100-120t/h120-140t/h160-180t/h
    Burner (oil)60-600kg/h100-1000kg/h100-1000kg/h140-1400kg/h
    Fuel consumption (oil)6.5-7kg/t6.5-7kg/t6.5-7kg/t6.5-7kg/t
    Mixing Tower
    Screen4 layer4 layer4 layer4/5 layer
    Aggregate weighing3x1000kg3x1500kg3x1500kg3x2000kg
    Bitumen weighing3x100kg3x200kg3x200kg3x200kg
    Filler weighing3x100kg3x200kg3x200kg3x200kg
    Mixer capacity1000kg1300kg1500kg2000kg
    Mixing cycle45s45s45s45s
    Dust Collecting System
    Bag house filtering380m2400m2500m2550m2
    Exhaust Fan power45kw55kw2x45kw2x55kw
    Asphalt Temperature140-180 ℃140-180 ℃140-180 ℃140-180 ℃
    Finished Asphalt Silo (Optional)30 ton30 ton30 ton60 ton
    Total Power-270kw-300kw-390kw-500kw

    *Plant capacity is base on standard working condition as followings:


    Atmospheric pressure
    760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Cycle time per batch45s
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg

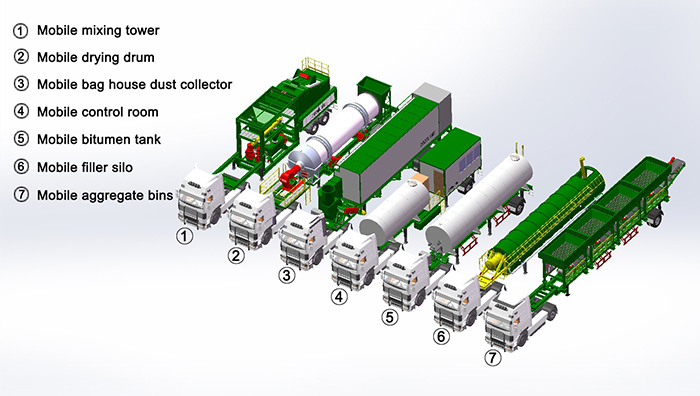

    Mobile asphalt mixing plant component

    1) Modular design, convenient and fast to move and install.
    2) Screening, hot storage, weighting are on one folding frame, can realize main tower "one truck to trail".
    3) Few transport vehicle, installation foundation need no special handle.
    4) Compact design, cover very small area.
    5) Accurate screening, weighting, batch mix can guarantee high quality.
    6) International classic quality control system, has long distance fault detect and maintain function.


    Main features of ZAP-M series mobile asphalt mixing plant


    Advantages of mobile asphalt mixing plant

    • Easily transortable
    • Easily assembling & disassembling
    • Landing legs with support bases to ensure adequate stability.
    • Low maintenance operation
    • Low energy consumption
    • Low emission
    • Saving time and cost of installation
    • Multi-fuel burner
    • Fully automatic controls


    Mobile asphalt mixing plant options

    • Asphalt mixture storage silo (mobile/stationary as optional)
    • Diesel, heavy oil, gas, coal or multi-fuel burners
    • Filler system (mobile/stationary as optional)
    • Bag house or water dust collector (mobile/stationary as optional)
    • Fiber additive system
    • Recycling asphalt plant
    • Bitumen tank and control room (mobile/stationary as optional)
