ZAP-C(M) models are available from 20TPH to 80TPH

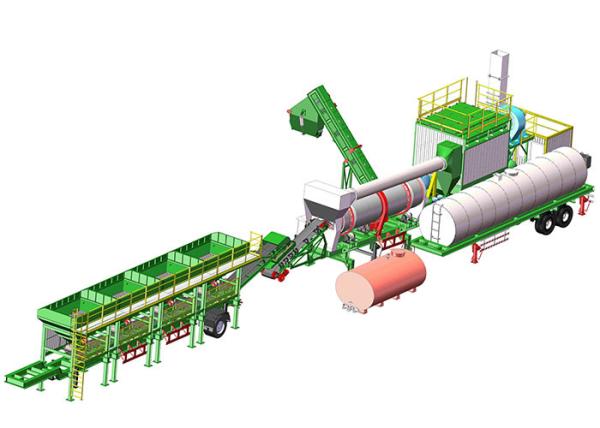

Continuous Drum Mix Asphalt Plant is very different with batch asphalt mixing plant. It produce the asphalt mixture in the drum which also dry the aggregate continuously.

• The structure is simple and modular design, easily transport and installation

• The investment of plant is lower than batch mixing plant

• Counter flow drying drum design design, drying efficiency is high, save energy

• Scraper type elevator delivery asphalt mixture cleaning and smoothly

• Multi-function burner

• Fully automatic control

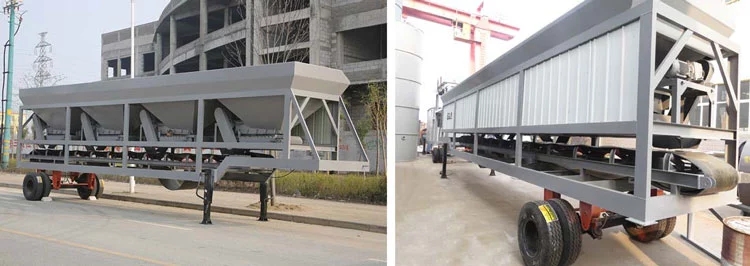

- The belt feeder use frequency conversion speed control, speed adjust rang is wide, high working efficiency.

- On the sand bin, there is vibrator, so it can guarantee normal working.

- The conveyor belt use circular belt without joint, steady running and long performance life.

- Mobile/portable wheeled chassis as optional.

- The application of latest international weighting technology, can guarantee the precision of each material.

Drying System

- Counter flow drying drum design, drying efficiency is high, save energy.

- Diesel, heavy oil, gas, coal or multi-fuel burners.

- Integrated highly efficient burner on one chassis.

- RAP system and filler system can be optional part.

- Mobile/portable wheeled chassis as optional.

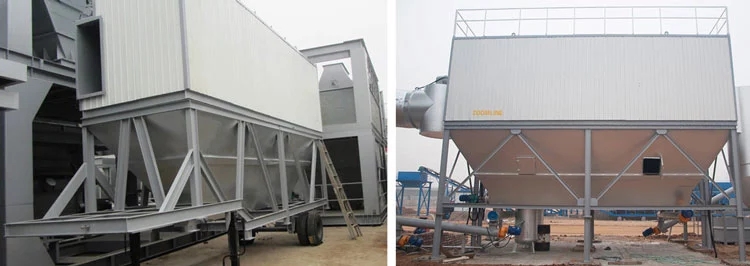

Dust Collecting System

- Bag house dust filter control emission be lower than 20mg/Nm3, eco-friendly.

- Adopt USA Dopont NOMEX filter bags, high temperature resistance and long service life.

- Intelligent temperature and control system.

- Mobile/portable wheeled chassis as optional.

Control system

- Adopt Germany SIEMENS electrical element, working stably even in harsh working environment.

- Adopt Japan ORMON PLC and touch screen, have high data processing capacity, various operation data can be saved real-times.

- Multi-language compatibility, display language can be selected according to the customer’s preference.
