    Road Construction 80-160 T/H Modular Design Mobile Asphalt Mixing Plant

    Ask Lasest Price
    Brand Name : ZOOMLINE
    Model Number : ZAP-M80-160
    Certification : CE, ISO, EAC, EMC
    Price : USD 270,000-360,000/set
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 10 sets per month
    Delivery Time : about 30-40 days after the advance payment or L/C
    • Product Details
    • Company Profile

    Road Construction 80-160 T/H Modular Design Mobile Asphalt Mixing Plant

    Road Construction 80-160 T/H Modular Design Mobile Asphalt Mixing Plant

    Product description

    Road Construction 80-160 T/H Modular Design Mobile Asphalt Mixing Plant

    ZAP-M series series of asphalt mixing Plant is my company to absorb foreign advanced technology, a variety of domestic models advantages, according to the needs of users and the market research and development of new products. It has the characteristics of modular design, compact structure, fast installation and operation, simple operation, high automation, advanced configuration, reliable performance, low noise, no pollution and dust discharge. The product is suitable for high-grade highways.


    Mobile asphalt mixing plant component

    1) Modular design, convenient and fast to move and install.
    2) Screening, hot storage, weighting are on one folding frame, can realize main tower "one truck to trail".
    3) Few transport vehicle, installation foundation need no special handle.
    4) Compact design, cover very small area.
    5) Accurate screening, weighting, batch mix can guarantee high quality.
    6) International classic quality control system, has long distance fault detect and maintain function.


    Mobile asphalt mixing plant options

    • Asphalt mixture storage silo (mobile/stationary as optional)
    • Diesel, heavy oil, gas, coal or multi-fuel burners
    • Filler system (mobile/stationary as optional)
    • Bag house or water dust collector (mobile/stationary as optional)
    • Fiber additive system
    • Recycling asphalt plant
    • Bitumen tank and control room (mobile/stationary as optional)

    Technical parameters

    Technical parameters of ZAP-M mobile asphalt mixing plant:

    ItemsZAP-M80ZAP-M100ZAP-M120ZAP-M160
    Plant Capacity80t/h100t/h120t/h160t/h
    Cold Aggregate Feeding System
    Hopper capacity4 x 6.5m34 x 6.5m34 x 6.5m35 x8m3
    Belt capacity100t/h120t/h140t/h180t/h

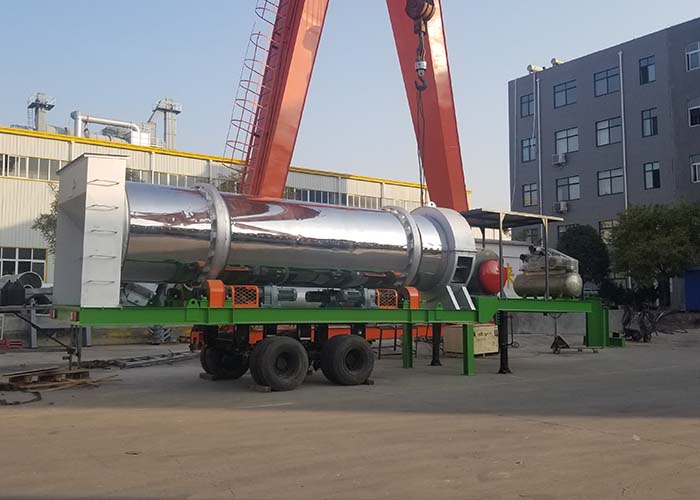

    Drying System
    Drying drum size1500x6600mm1500x6600mm1800x8000mm1900x9000mm
    Drying capacity80-100t/h100-120t/h120-140t/h160-180t/h
    Burner (oil)60-600kg/h100-1000kg/h100-1000kg/h140-1400kg/h
    Fuel consumption (oil)6.5-7kg/t6.5-7kg/t6.5-7kg/t6.5-7kg/t
    Mixing Tower
    Screen4 layer4 layer4 layer4/5 layer
    Aggregate weighing3x1000kg3x1500kg3x1500kg3x2000kg
    Bitumen weighing3x100kg3x200kg3x200kg3x200kg
    Filler weighing3x100kg3x200kg3x200kg3x200kg
    Mixer capacity1000kg1300kg1500kg2000kg
    Mixing cycle45s45s45s45s
    Dust Collecting System
    Bag house filtering380m2400m2500m2550m2
    Exhaust Fan power45kw55kw2x45kw2x55kw
    Asphalt Temperature140-180 ℃140-180 ℃140-180 ℃140-180 ℃
    Finished Asphalt Silo (Optional)30 ton30 ton30 ton60 ton
    Total Power-270kw-300kw-390kw-500kw

    *Plant capacity is base on standard working condition as followings:


    Atmospheric pressure
    760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Cycle time per batch45s
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg
    Company Information

    Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.


    Customers visit


    Packaging and Shipping

    Our Service

    Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

    ZOOMLINE Machinery adheres to service concept "everything for customers, creating value for customers, makes customers" demand as focus and achieves "exceed customer expectations, and beyond the industry standard" service goals with first-class speed, skills and attitude.
    We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.


    FAQ

    Q1: Are you trading Company or Factory?

    We are factory. We have been engaged in the production of asphalt machine for more than 30 years.


    Q2: How to use this asphalt mixing plant?

    As a professional asphalt mixing plant manufacturer,we have many professional engineers, they will go to clients' site for guiding the installation and test-running;also can teach you how to use the mixing plant properly.


    Q3: Can you sent me some spare parts freely?

    Generally speaking,we usually sent customers the wearing parts when shipping the product, but if you have a large order,we will consider to sent you some spare parts freely


    Q4: What is the delivery time?
