    PLC Mini Continous Mobile Asphalt Batch Mix Plant Fast Transportation

    Ask Lasest Price
    Brand Name : ZOOMLINE
    Model Number : ZAP-CM
    Certification : CE, ISO, EAC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

    PLC Mini Continous Mobile Asphalt Batch Mix Plant Fast Transportation

    Continous Plant Small Portable Asphalt Plant Hot Mixing Plant


    Product Description


    Design for Small Portable Asphalt Plant

    “one-trailer-mounted ” continuous asphalt mixing plant is optimized and redesigned based on our stationary continuous asphalt mixing station and semi-mobile continuous asphalt mixing station.


    STRUCTURE

    Continuous asphalt mixing plant is mainly composed of cold aggregate supply system, drying drum, continuous mixer, burning system, dust collecting system, finished asphalt storage silo, bitumen supply system and control system.


    Features

    “one-trailer-mounted ” continuous asphalt mixing plant realizes the high integration of asphalt plant, and one transport trailer can realize all the functional requirements of the asphalt mixing station (filling, drying, mixing, storage of finished products, operation), which meets the user's requirements for fast installation, fast transition, and rapid production.


    Up to now, our “one-trailer-mounted ” continuous asphalt mixing plant” has been exported to Europe, Africa, North America etc. The convenience of fast transportation, transfer, and rapid recommissioning greatly saves the costs and improves the construction efficiency.


    Model Description of Small Portable Asphalt Plant

    ModelCapacityTrailer neededNote
    ZAP-CM2015-20TPHFull trailer/semitrailerone trailer
    ZAP-CM4030-40TPHFull trailer/semitrailerone trailer

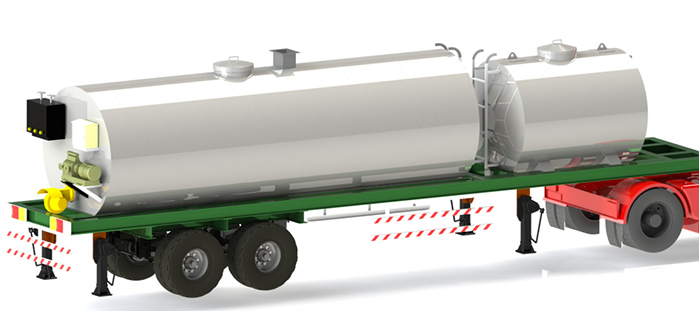

    ZAP-CM6050-60TPHFull trailer/semitrailerOne more trailer for bitumen tank
    ZAP-CM8070-80TPHsemitrailerOne more trailer for bitumen tank
    ZAP-CM10090-100TPHsemitrailerOne more trailer for bitumen tank
    ZAP-CM120110-120TPHsemitrailerOne more trailer for bitumen tank

    Note:Technological updating subjects to change without notice


    Plant capacity is base on standard working condition as followings:

    Atmospheric pressure760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg
