    Professional Mobile Asphalt Drum Mix Plant Multi - Function Burner

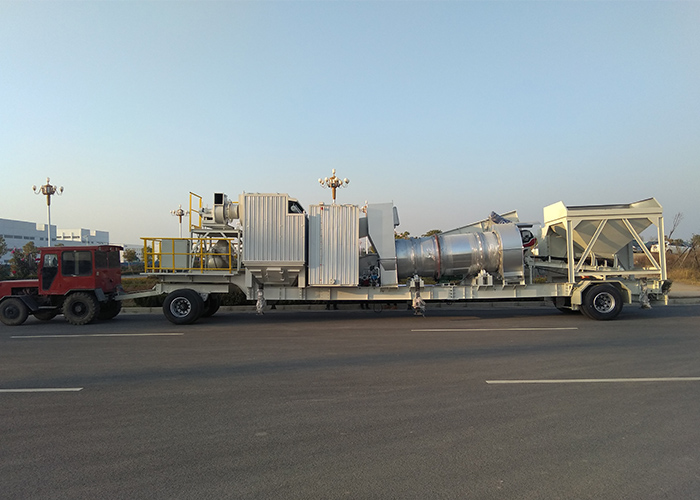

    Completely Mobile Small Portable Asphalt Plant Drum Mixing Plant


    Product Description


    Economical and highly portable alternative to batch asphalt mixing plants

    ZAP-CM models are available from 20TPH to 120TPH.


    Features of small portable asphalt mixing plant

    Continuous Drum Mix Asphalt Plant is very different with batch asphalt mixing plant. It produce the asphalt mixture in the drum which also dry the aggregate continuously.

    • The structure is simple and modular design, easily transport and installation

    • The investment of plant is lower than batch mixing plant

    • Cocurrent flow drying drum design, drying efficiency is high, save energy

    • Scraper type elevator delivery asphalt mixture cleaning and smoothly

    • Multi-function burner

    • Fully automatic control


    Cold Aggregate Feeding System

    - The belt feeder use frequency conversion speed control, speed adjust rang is wide, high working efficiency.

    - On the sand bin, there is vibrator, so it can guarantee normal working.

    - The conveyor belt use circular belt without joint, steady running and long performance life.

    - Mobile/portable wheeled chassis as optional.

    - The application of latest international weighting technology, can guarantee the precision of each material.


    Technical Parameters of Mobile Continuous Asphalt Mixing Plant

    ItemsZAP-C(M)20ZAP-C(M)40ZAP-C(M)60ZAP-C(M)80
    Plant Capacity20t/h40t/h60t/h80t/h
    Cold Aggregate Feeding System
    Hopper capacity3x4m34x4m34 x 6.5m34 x 6.5m3
    Belt capacity40t/h60t/h80t/h100t/h
    Drying System
    Drying drum size1000x4500mm1200x5000mm1500x6500mm1500x6500mm
    Drying capacity15-25t/h40-50t/h60-70t/h80-100t/h
    Burner (oil)40-130kg/h70-300kg/h100-400kg/h60-600kg/h
    Fuel consumption (oil)6.5-7kg/t6.5-7kg/t6.5-7kg/t6.5-7kg/t
    Dust Collecting System
    Exhaust Fan power5.5kw7.5kw30kw30kw
    Finished Asphalt Silo2m32.5m34.5m34.5m3
    Asphalt Temperature130-160 ℃130-160 ℃130-160 ℃130-160 ℃
    Total Power-27kw-57kw-92kw-100kw

    Plant capacity is base on standard working condition as followings:

    Atmospheric pressure760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg
