    Fast Transition Small Portable Asphalt Plant Mobile Asphalt Drum Mix Station

    Ask Lasest Price
    Brand Name : ZOOMLINE
    Model Number : ZAP-CM
    Certification : CE, ISO, EAC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

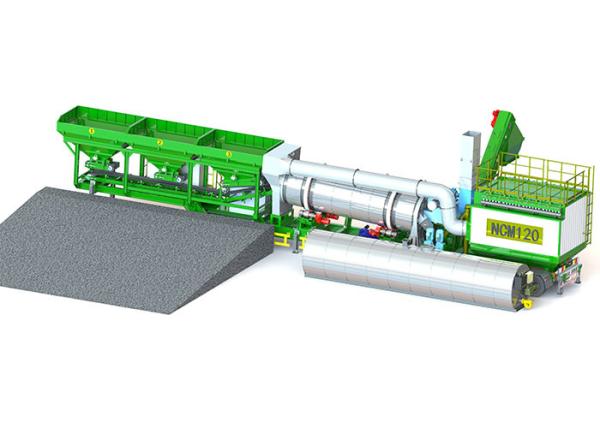

    Fast Transition Small Portable Asphalt Plant Mobile Asphalt Drum Mix Station

    Fast Transition Small Portable Asphalt Plant Mobile Asphalt Drum Mix Station


    Product Description


    SUMMARY

    ZOOMLINE ZAP-CM series mixing plant is principally used in construction of roads project on small or medium scale. Mobile type asphalt mixing plant is basically designed for effortless assembling and disassembling for convenient moving from one project site to another often. Mobile asphalt mixing plant can greatly save the time and costs of installation.


    STRUCTURE

    Continuous asphalt mixing plant is mainly composed of cold aggregate supply system, drying drum, continuous mixer, burning system, dust collecting system, finished asphalt storage silo, bitumen supply system and control system.


    Technical Parameters of Mobile Continuous Asphalt Mixing Plant

    ItemsZAP-C(M)20ZAP-C(M)40ZAP-C(M)60ZAP-C(M)80
    Plant Capacity20t/h40t/h60t/h80t/h
    Cold Aggregate Feeding System
    Hopper capacity3x4m34x4m34 x 6.5m34 x 6.5m3
    Belt capacity40t/h60t/h80t/h100t/h
    Drying System
    Drying drum size1000x4500mm1200x5000mm1500x6500mm1500x6500mm
    Drying capacity15-25t/h40-50t/h60-70t/h80-100t/h
    Burner (oil)40-130kg/h70-300kg/h100-400kg/h60-600kg/h
    Fuel consumption (oil)6.5-7kg/t6.5-7kg/t6.5-7kg/t6.5-7kg/t
    Dust Collecting System
    Exhaust Fan power5.5kw7.5kw30kw30kw
    Finished Asphalt Silo2m32.5m34.5m34.5m3
    Asphalt Temperature130-160 ℃130-160 ℃130-160 ℃130-160 ℃
    Total Power-27kw-57kw-92kw-100kw

    Plant capacity is base on standard working condition as followings:

    Atmospheric pressure760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg
