LB1000 Asphalt Machine Bitumen Mixing Plant For Airport And Highway

Product Description

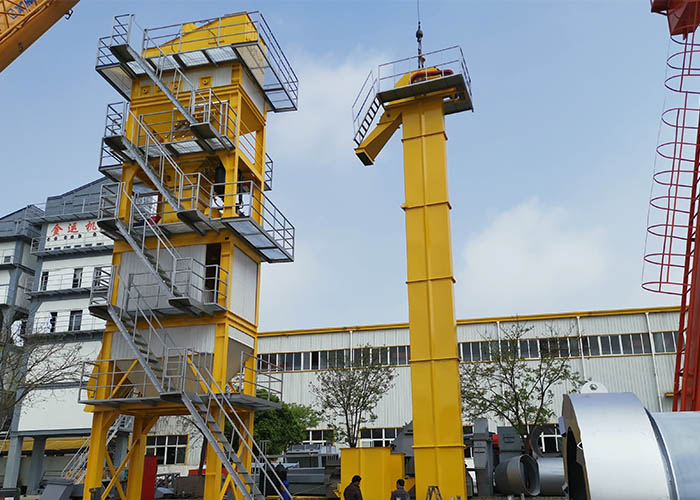

Batch type asphalt mixing plant is designed by excellent structure which can make sure high quality asphalt mixture and high working performance. Batch type asphalt mixing plant comes from Europe, and adopted by China and many countries now. Main parts includes cold aggregate feeding system, drying drum, mixing tower, bitumen supply system, filler system, dust filtering system and control system.

ZOOMLINE Batch type asphalt mixing plant adopts European technology, the whole plant features including high performance, reliable operation, compact structure, modular design, low failure etc.. ZOOMLINE produces and supplies batch type asphalt mixing plant with capacity from 40TPH to 320TPH for whole world.

VIBRATING SCREEN
-High wear resistance screen (65Mn) with longer working life and lower maintenance cost. The size can be designed according to customers’ requirements.
-Draw and push type of screens are easy and convenient to maintain.
-Types of vibrating screen can be supplied: Single-shaft vibration screen, Double-shaft vibration screen and Vibration motor type vibrating screen.
-Rated capacity of our vibrating screen: 40-160T/H with 4 layers, 240T/H with 5 layers, 320T/H with 5 or 6 layers, and other customized specifications.

MIXER
Mixer is designed with 3D mixing design, with long arms, shortened shaft diameter and a bi-directional mixing blades array.
The distance between blades and bottom of mixer is also restrained to the optimal minimum.
Bitumen is sprayed from multi-points evenly over aggregate by a pressurized pump to achieve full coverage and high mixing efficiency.
The mixer discharging process has been completely designed, the discharge time is minimal now.
Large sliding gate at the bottom allows speedy discharge of hot mixture from the mixer.

Technical parameters of 40-320tph batch asphalt mixing plant

Henan ZOOMLINE Machinery CO., Ltd. is a high-tech road construction machinery enterprise. Since its inception, we have been adhering the business concept of "Cost-effective solutions for your project", from the product development, production, quality control, whole system test, sales and after-sales service, we have kept the style of precise, realistic and scientific for elaborating products and services to let customers satisfied. Now, our business and service organizations have covered all domestic regions and 30 foreign countries, and we are committed to being well-known brand–ZOOMLINE.

Based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE is a leader in the production of professional asphalt mixing plant, recycling asphalt plant, corollary equipment supplier. We have one R & D manufacturing center covers about 50,000 square meters. The leading products include stationary asphalt mixing plant, mobile asphalt mixing plant, continuous drum asphalt mixing plant, which are widely used in highway, city road, bridges and air port.

Our asphalt mixing plants have got CE,ISO,EAC certificate. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Uzbekistan, Kyrgyzstan, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.

Products

1. ZAP-S series Stationary asphalt mixing plants 40-320TPH

2. ZAP-M series Mobile asphalt mixing plant 80-160TPH

3. ZAP-C(M) series Continuous asphalt mixing plant 20-80TPH

4. RAP series Recycling asphalt mixing plant 60-160TPH

5. Environmental asphalt mixing plant 40-320TPH

6. Asphalt Plant Components

7. Corollary Equipment: Bitumen melting machine, Bitumen emulsifying plant, Polymer modified bitumen plant, Road repairing machine, Additive system, Generator Set

8. Burner: Coal burner, Oil burner, Gas burner, Boiler burner
