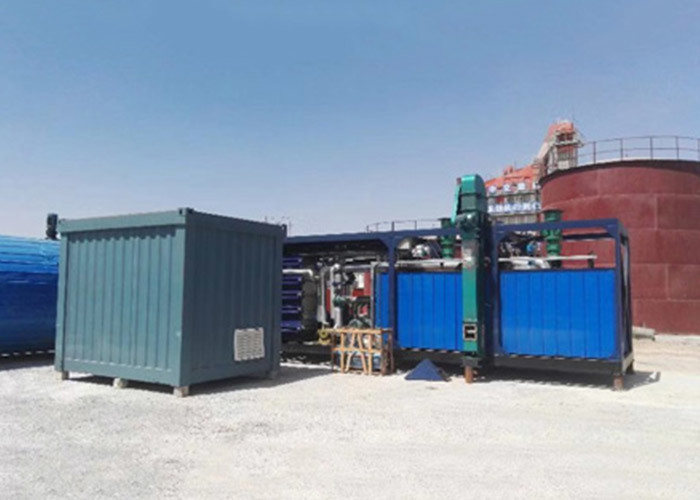

5-50T/H Polymer Modified Bitumen Plant, Modified Bitumen Equipment

Product Description

Applied range:

It is mainly used in expressway, first class highway and airport runway and etc.

Modified asphalt complete set of equipment composition

SG series of modified asphalt equipment suitable for the production of a variety of polymer modified asphalt, modifiers can be SBS, SBR, EVA, PE, etc.

The Polymer Modified Bitumen Plant is mainly composed of swelling stirring, instantaneous temperature rise, measurement, grinding, finished product incubation, electrical control and other systems.

1. Swelling stirring system

This equipment adopts the circulating heating mode of channel steel heat conduction oil outside the swelling mixing tank.

2. Heating system

The system consists of asphalt pump, frequency converter, temperature sensor, heat exchanger, and the corresponding of valve pipe.

3. Metering system

The measurement of asphalt is measured by high precision asphalt flowmeter, and the mechanical data of flow meter counter is converted into impulse electric signal.

4. Grinding system

Reasonable to add high viscosity modified asphalt mixture delivery pump with two high-speed shear colloid mill series, modified asphalt grinding system, a grinding after two grinding machine twice high-speed shear grinding can achieve ideal effect.

5. Control system

The man-machine interactive operation interface developed by imported PLC+ force control configuration is adopted.

6. Finished product incubation system

The prepared modified asphalt is stored in the finished product incubator tank, and is continuously stirred and inoculated. The stabilizer through the test formula is added to ensure the modified asphalt has good thermal storage stability.

Technical Parameters of the Polymer Modified Bitumen Plant

Henan ZOOMLINE Machinery CO., Ltd. is a high-tech road construction machinery enterprise. Since its inception, we have been adhering the business concept of "Cost-effective solutions for your project", from the product development, production, quality control, whole system test, sales and after-sales service, we have kept the style of precise, realistic and scientific for elaborating products and services to let customers satisfied. Now, our business and service organizations have covered all domestic regions and 30 foreign countries, and we are committed to being well-known brand–ZOOMLINE.

Based in Nanyang Longsheng Industrial Park of Henan, ZOOMLINE is a leader in the production of professional asphalt mixing plant, recycling asphalt plant, corollary equipment supplier. We have one R & D manufacturing center covers about 50,000 square meters. The leading products include stationary asphalt mixing plant, mobile asphalt mixing plant, continuous drum asphalt mixing plant, which are widely used in highway, city road, bridges and air port.

Our asphalt mixing plants have got CE,ISO,EAC certificate. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Uzbekistan, Kyrgyzstan, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.

Products

1. ZAP-S series Stationary asphalt mixing plants 40-320TPH

2. ZAP-M series Mobile asphalt mixing plant 80-160TPH

3. ZAP-C(M) series Continuous asphalt mixing plant 20-80TPH

4. RAP series Recycling asphalt mixing plant 60-160TPH

5. Environmental asphalt mixing plant 40-320TPH

6. Asphalt Plant Components

7. Corollary Equipment: Bitumen melting machine, Bitumen emulsifying plant, Polymer modified bitumen plant, Road repairing machine, Additive system, Generator Set

8. Burner: Coal burner, Oil burner, Gas burner, Boiler burner
