100tph Bitumen Batch Mixing Plant
Product Description
ZAP-S series Stationary Batch Asphalt Mixing Plant are available
from 40TPH to 320TPH, and is most popular for its high output and
high performance.
Technical parameters of 100tph batch asphalt mixing plant
| Items | ZAP-S100 |
| Plant Capacity | 100t/h |
| Cold Aggregate Feeding System |
| Hopper capacity | 4 x 6.5m3 |
| Belt capacity | 100t/h |
| Drying System |
| Drying drum size(mm) | 1500x6600 |
| Drying capacity | 100-120t/h |
| Burner (oil) kg/h | 100-1000 |
| Fuel consumption (oil) | 6.5-7kg/t |
| Mixing Tower |
| Screen | 4 layer |
| Aggregate weighing | 3x1500kg |
| Bitumen weighing | 3x200kg |
| Filler weighing | 3x200kg |
| Mixer capacity | 1300kg |
| Mixing cycle | 45s |
| Dust Collecting System |
| Bag house filtering | 480m2 |
| Exhaust Fan power | 55kw |
| Asphalt Temperature | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | 30 ton |
| Total Power | -300kw |

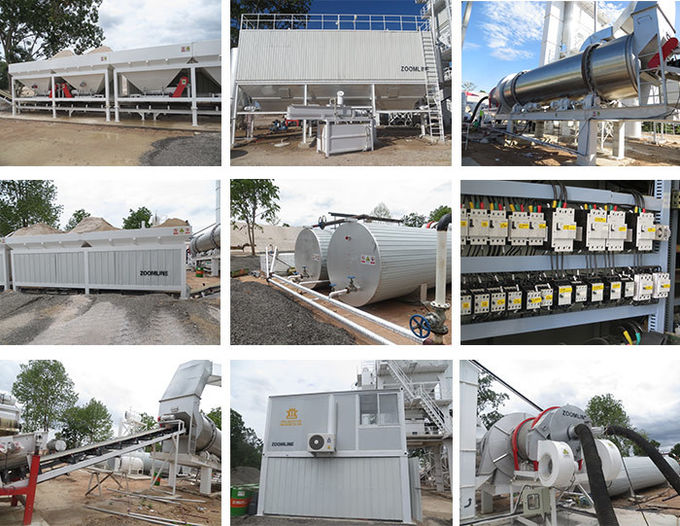

Main components of ZAP-S40-320 asphalt mixing plant:
Asphalt mixing plant mainly including cold feed systems, drying
system, burning system, hot material enhance, vibrating screen, hot
material storage bins, weighing mixing system, bitumen supply
system, powder supply system, dust removal system, finished product
storage bin, control system and other parts.
Cold Aggregate Feeding System
- Each discharge port has a material shortage alarm device, and if
there is no material or arching, it will alarm automatically .
- There is a vibrator on the sand bin to ensure normal operation.
Drying System
- Optimizing the blade geometry of the dryer makes the drying and
heating process extremely efficient, reduces energy consumption,
and increases the heating efficiency by 30% compared with the
conventional design; due to the high heating efficiency, the
surface temperature of the drum is relatively low, so the cooling
period after operation is greatly shortened.
- Adopting the famous brand Honeywell temperature intelligent
control system.
Vibrating screen
- Improve vibration and amplitude to optimize the impact on the
available screen.
- A wear-resistant charging system with a uniform distribution of
the particle mixture.
- Wide open door for easy access, simple screen replacement and
reduced downtime.
- The best combination of vibration direction and screen box
inclination ensures ratio and screening efficiency.
Main advantages:
• Cost effective solutions for your project
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers
requirements
• Multi-fuel burner for choose
• Fully automatic controls
Packaging and Shipping
1.The whole asphalt mixing plant is designed according to standard
high cabinet container, suitable for the construction requirement
in both home and abroad.
2.All the components of this asphalt plant can be put into the
container, can greatly reduce transport cost.
ZOOMLINE Asphalt Plant Sold
Since ZOOMLINE start-up, we have become one of the most reliable
partners of construction projects at home thorough ongoing
technical investment. Our asphalt mixing plant have been used in
highways, high-grade highways, urban roads and airport construction
and got high reputation for their excellent performance. Nowadays,
our asphalt plant products have been sold to Russia, Cambodia,
Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia,
Indonesia, Belgium and Thailand etc.
