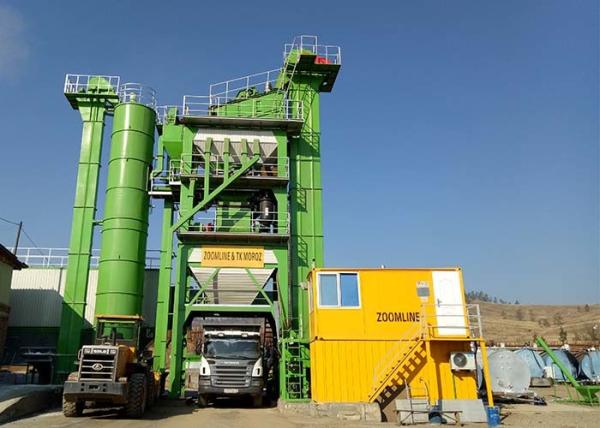

120TPH Stationary Hot Mix Asphalt Plant
Product Description
ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.
Technical parameters of 40tph batch asphalt mixing plant
Items | ZAP-S120 |
Plant Capacity | 120t/h |
Cold Aggregate Feeding System | |
Hopper capacity | 4 x 4.5 m3 |
Belt capacity | 140t/h |
Drying System | |
Drying drum size(mm) | 1800x8000 |
Drying capacity | 120-140t/h |
Burner (oil) kg/h | 100-1000 |
Fuel consumption (oil) | 6.5-7kg/t |
Mixing Tower | |
Screen | 4 layer |
Aggregate weighing | 3x1500kg |
Bitumen weighing | 3x200kg |
Filler weighing | 3x200kg |
Mixer capacity | 1500kg |
Mixing cycle | 45s |
Dust Collecting System | |
Bag house filtering | 550m2 |
Exhaust Fan power | 18.5/22kw |
Asphalt Temperature | 140-180 ℃ |
Finished Asphalt Silo (Optional) | 30ton |
Total Power | -390kw |
Main advantages:
• Cost effective solutions for your project
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Multi-fuel burner for choice
• Fully automatic controls
Main components of ZAP-S40 asphalt mixing plant
Asphalt mixing plant mainly including cold feed systems, drying
system, burning system, hot material enhance, vibrating screen, hot
material storage bins, weighing mixing system, bitumen supply
system, powder supply system, dust removal system, finished product
storage bin, control system and other parts.
After-sale Service
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
![]() |
