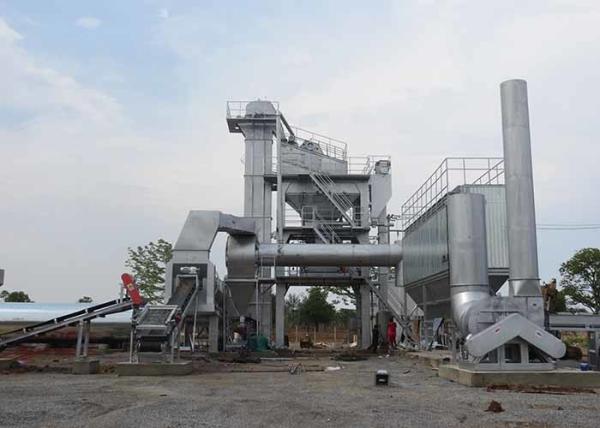

160TPH Stationary Asphalt Mixing Plant
160TPH asphalt batch mix plant is ZOOMLINE ZAP-S160 160t/h batching
stationary batching asphalt mixing plant.
Technical parameters of ZAP-S series asphalt plant 40-320t/h batch
mix plant
| Style | ZAP-S40 | ZAP-S60 | ZAP-S80 | ZAP-S100 | ZAP-S120 | ZAP-S160 | ZAP-S200 | ZAP-S240 | ZAP-S320 |
| Rated capacity(T/H) | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 320 |
| Total power(kW) | ≈150 | ≈180 | ≈270 | ≈300 | ≈390 | ≈500 | ≈570 | ≈640 | ≈800 |
| Mixer volume(kg) | 500 | 750 | 1000 | 1300 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Cold aggregtae kinds | 4 | 5 | 6 |
| Vibration screen | Uniaxial circular vibrating screen | Biaxial linear vibrating screen |
| Mixing cycle | 45S |
| Fuel consumption | ≤6.5kg/t finished product |
| Fuel type | Heavy/ Light oil |
| Control mode | Manual/ Automatic |
| Finished product temperature | 140-180°C |
| Aggregate weighting precision | ±0.5%(Dynamic) |
| Mineral weighting precision | ±0.5%(Dynamic) |
| Bitumen weighting precision | ±0.25%(Dynamic) |
| Dust control way | Primary cyclone dust collection , secondary bag dust collection |
| Exhaust emission concetration | ≤20mg/Nm3 |
| Finished product bin | Bottom placed / side placed |
| Optional |
ZAP-S160 160TPH asphalt mixing machine characteristics:
1.Simple equipment structure, flexible layout, easy maintenance.
Modular design, easy to installation and move.
2.All conveyor belts are ring-bonded ,longer than belt buckle, no
mechanical failure (belt buckle is easy to break).
3.SKF bearings (stirring, drying and other key core) - bearing long
life, high temperature, low temperature and other extreme weather
effects. Reduced maintenance.
4.Automatic lubrication - key components are equipped with
automatic lubrication device (Lincoln),it was controlled by control
room. To ensure that each bearing lubrication in place, reduce
manpower, reduce the occurrence of failure.
5.All solenoid valves and cylinders are used in Germany Festo,
practical, stable quality (resistance to dust, strong temperature).
6.Mixer wear parts using CrMo alloy, effective life more than
100,000 batches. Adopt double-axis dual-motor drive, high
efficiency, low energy consumption. Asphalt with the second
measurement of high pressure spray, stir quickly and evenly.
7.International first-line brand of electronic control components.
PLC supporting remote detection (through the Internet can be remote
on the system fault detection, recovery).
8.Big Dust removal area, and supporting a dust humidifier, to
prevent powder warehouse flying.
9.Machining parts are own processing, quality, delivery period are
guaranteed, parts supply convenient and quickly in the future.
10.All asphalt plant machine has test assembly and trial running
before living the factory. To make sure each parts working
reliable, connected correctly. Ensure the quality of the equipment
which is stable and reliable.
11.Variety kinds of fuels to choose, for different regions,
different users, you can choose coal, heavy oil, diesel, gas and
other fuels, we have a wealth of construction experiences on each
fuel using, we can provide perfect solutions to customers.
Main compositions of 160TPH asphalt mixing machine:
1.Cold aggregate supply system 2.Drying system 3.Mixing tower 4.Bag
house dust collector 5.Bitumen supply system 6. Electrical control
system
160TPH asphalt mixing machine options:
1.Environmental sheeting 2.Asphalt mixture storage silo 3.Diesel, heavy oil, gas, coal or multi-fuel burners 4.Filler system 5.Bag house or water dust collector 6.Fiber additive system 7.Recycling asphalt plant
Perfect after-sales service system and all-round service network
are the guarantee of ZOOMLINE to provide quality services. We
company promotes product sales, technical service, hotline,
promotion and after-sales service mainly by customer service
department as complementary platform and by all levels service
personnel of dealer.
