    Grey 160t/H Hot Mix Bitumen Plant With House Dust Filter

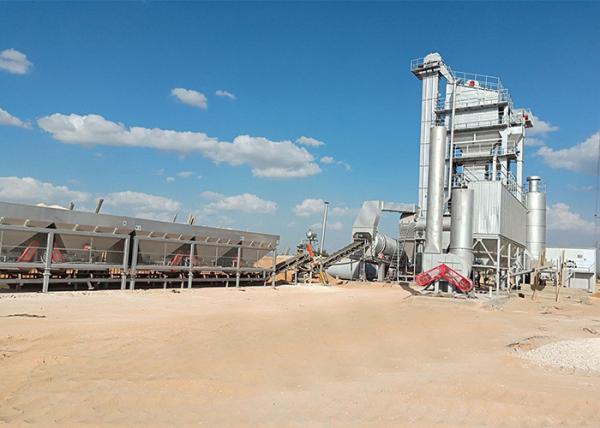

    160t/H Capacity Senior Grey Hot Mix Asphalt Plant With House Dust Filter


    ZOOMLINE asphalt mixing plant is mainly used in the road construction of highway, freeway, national road, main road, city road, airport, bridge and so on.


    Main components of stationary batching asphalt mixing plant:

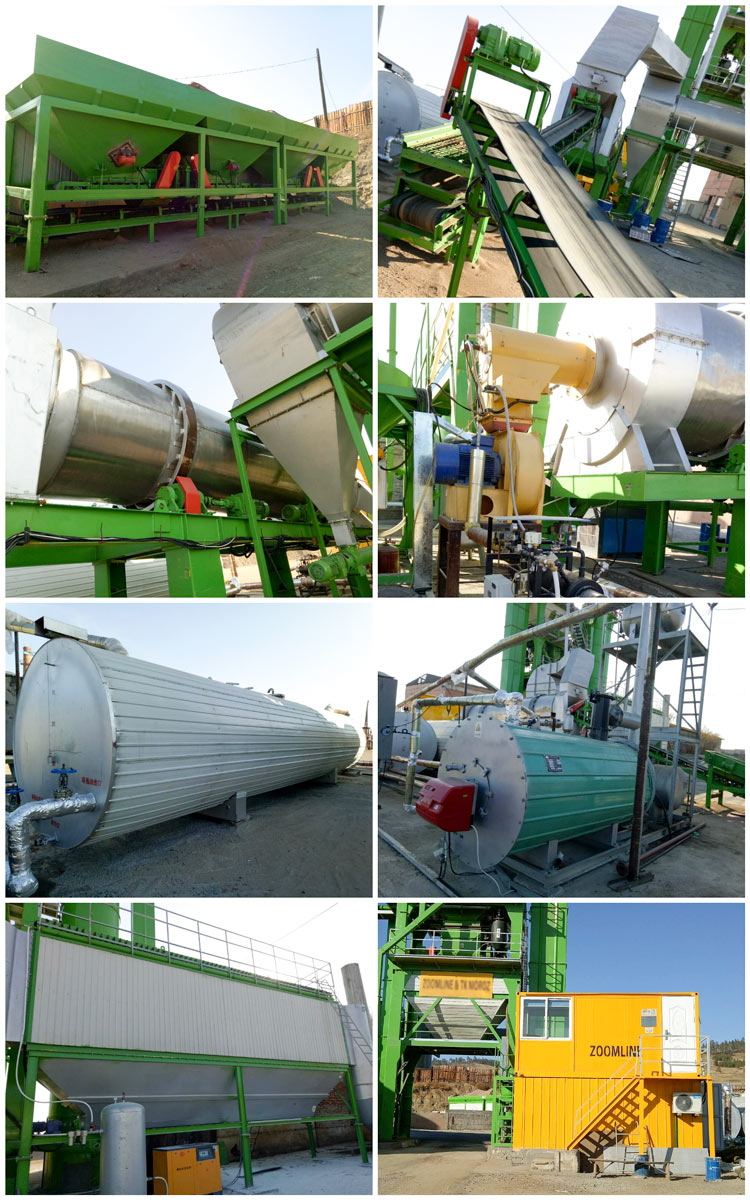

    Asphalt mixing plant mainly includes cold feeding systems, drying system, burning system, mixing tower system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
    We accept customization on the configurations.


    Technical parameters of ZAP-S160 asphalt batch plant

    ZAP-S160 asphalt batch plant
    Rated capacity160T/HStandard condition
    Total power500kwStandard configuration
    Cold aggregate bins4
    Rated drying capacity160T/H5% moisture
    Mixing cycle45S
    Mixer capacity2000kg
    vibration screenVibrator forced vibrating screenFour- deck screen
    Fuel consumption≤6.5kg/t finished product
    Fuel typeHeavy/ Light oilCoal burner is optional
    Control modeManual/ Automatic
    Finished product temperature140-180°C
    Aggregate weighting precision±0.5%Dynamic
    Mineral weighting precision±0.5%Dynamic
    Bitumen weighting precision±0.3%Dynamic
    Dust control wayBag house dust collectorwater dust collector is optional
    Exhaust emission concentration≤30mg/Nm3
    Finished product binBottom placed/side placedOptional

    Models and capacity of ZOOMLINE asphalt plants:

    ItemsZAP-S40ZAP-S60ZAP-S80ZAP-S100ZAP-S120ZAP-S160ZAP-S200ZAP-S240ZAP-S320
    Plant Capacity40t/h60t/h80t/h100t/h120t/h160t/h200t/h240t/h320t/h

    *Asphalt plant capacity is base on standard working condition as followings:

    Atmospheric pressure760mmHg
    Ambient temperature20℃
    Material passing 40mm mesh100%
    Material passing 3mm mesh40%
    Material passing 74µm≤7%
    Aggregate temperature at discharging end of drum dryer160℃
    Density of aggregate1650kg/m3
    Specific heat of aggregate0.21kcal/kg℃
    Filler content5%
    Bitumen content5%
    Sand content≤40%
    Max.aggregate size≤40mm
    Average moisture of cold aggregates≤5%
    Cycle time per batch45s
    Diesel calorific value≥10500Kcal/kg
    Heavy oil calorific value≥9850Kcal/kg
    Nature gas calorific value≥8000Kcal/Nm3
    Coal calorific value≥5500Kcal/kg


    Packaging & Shipping

    The whole asphalt mixing plant is designed according to standard 40HQ container (40 foot high cube container), suitable for the construction requirement in both home and abroad.
    All the components of our asphalt plant can be loaded into the container, which can greatly reduce transport cost.


    Installation & Debugging on site

    Be responsible for each asphalt plant! Be responsible for every customer!


    ZOOMLINE Certificate

    After nearly 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. Our asphalt mixing plants have got CE, EAC, EMC and ISO9001 certificate.
