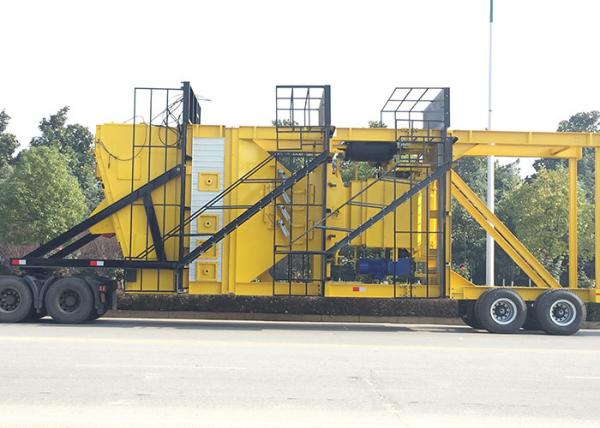

Selling price of China's top producer YLB1000 mobile asphalt
station
ZAP-M80 80t/h Asphalt mixing plant is mainly used in the road
construction of highway, freeway, national road, main road, city
road, airport, bridge and so on.
Product introduction
1. Absorption of the introduction of foreign advanced technology,
combined with our company experience for many years of production asphalt mixing equipment, energy saved and environment protected.
2. Asphalt Mixing Plant is manufactured with domestic advanced level of technology. Applicable to the production of ordinary asphalt, modified asphalt
mixture, colored asphalt mixture, it is the preferred equipment for high-grade highway construction.
Technical parameters of ZAP-M80 asphalt batch plant
| ZAP-M80 Asphalt batch plant |
| Rated capacity | 80T/H | Standard condition |
| Total power | 270kw | Standard configuration |
| Cold aggregate bins | 4 | |
| Rated drying capacity | 80T/H | 5% moisture |
| Mixing cycle | 45S | |
| Mixer capacity | 1000kg | |
| vibration screen | Vibrator forced vibrating screen | Four- deck screen |
| Fuel consumption | ≤6.5kg/t finished product | |
| Fuel type | Heavy/ Light oil | Coal burner is optional |
| Control mode | Manual/ Automatic | |
| Finished product temperature | 140-180°C | |
| Aggregate weighting precision | ±0.5% | Dynamic |
| Mineral weighting precision | ±0.5% | Dynamic |
| Bitumen weighting precision | ±0.3% | Dynamic |
| Dust control way | Bag house dust collector | water dust collector is optional |
| Exhaust emission concentration | ≤30mg/Nm3 | |
| Finished product bin | Bottom placed/side placed | Optional |
Mobile hot mix asphalt plant has the following characteristics:
1. Simple equipment structure, flexible layout, easy maintenance.
Modular design, easy to installation and move.
2. SKF bearings (stirring, drying and other key core) - bearing
long life, high temperature, low temperature and other extreme
weather effects. Reduced maintenance.
3. Automatic lubrication - key components are equipped with
automatic lubrication device (Lincoln),it was controlled by control
room. To ensure that each bearing lubrication in place, reduce
manpower, reduce the occurrence of failure.
4. All solenoid valves and cylinders are used in Germany Festo,
practical, stable quality (resistance to dust, strong temperature).
5. Mixer wear parts using CrMo alloy, effective life more than
100,000 batches. Adopt double-axis dual-motor drive, high
efficiency, low energy consumption. Asphalt with the second
measurement of high pressure spray, stir quickly and evenly.
6. International first-line brand of electronic control components.
PLC supporting remote detection (through the Internet can be remote
on the system fault detection, recovery).
7. Big Dust removal area, and supporting a dust humidifier, to
prevent powder warehouse flying.
8. All reducers are used hardened gear reducer ( long life, low
failure, no oil leakage compared with cycloid reducer).
9. Variety kinds of fuels to choose, for different regions,
different users, you can choose coal, heavy oil, diesel, gas and
other fuels, we have a wealth of construction experiences on each
fuel using, we can provide perfect solutions to customers.
10. All equipment has test assembly and trial running before living
the factory. To make sure each parts working reliable, connected
correctly. Ensure the quality of the equipment which is stable and
reliable.
Packaging & Shipping
The whole asphalt mixing plant is designed according to standard
40HQ container (40 foot high cube container), suitable for the
construction requirement in both home and abroad.
All the components of our asphalt plant can be loaded into the
container, which can greatly reduce transport cost.
ZOOMLINE factory
Henan ZOOMLINE Machinery CO., Ltd is based in Nanyang Longsheng
Industrial Park of Henan. ZOOMLINE Machinery is a professional
manufacturer of asphalt mixing plant, coal burner, and support
equipment that draws on years' experiences and technology
developments.
Our main products include: Stationary asphalt mixing plant
40-320TPH, Mobile asphalt mixing plant 40-160TPH, Continuous
asphalt mixing plant 20-160TPH, Recycling asphalt mixing plant
60-120TPH, Coal burner, and so on.
FAQ
1. What payment terms are available for your company?
T/T (Telegraphic Transfer), L/C(Letter of credit), BG (bank
guarantee), D/P(Documents against Payment), D/A((Documents against
Acceptance), Western Union and other.
2. How long is needed for installation working of one set asphalt
mixing plant?
20-30 working days for batch asphalt mixing plant, and 10-20
working days for continuous(drum) asphalt mixing plant
3. What's your asphalt mixing plant model means?
For example ZAP-S160: "ZAP" means ZOOMLINE Asphalt Plant, "S" means
Stationary, "160" means the capacity of asphalt plant is 160TPH.
"ZAP-S160" model mean ZOOMLINE stationary asphalt mixing plant with
capacity of 160TPH. While "ZAP-M120" model mean ZOOMLINE mobile
asphalt mixing plant with capacity of 120TPH.
4. How about the spare parts supply of your company?
We will provide some wearing parts along with whole asphalt mixing
plant to user freely, and user can purchase more wearing parts
along with whole asphalt mixing plant. We will keep the spare parts
supply to user in the whole service life of asphalt mixing plant.
5. How about the after sales service of your company?
We will send professional technical staff to user's project working
site to guide installing work, and commissioning the plant and
training the operators of the buyer. And ZOOMLINE provide the
technical support service to user's within the whole service life
of asphalt mixing plant.
