One-trailer-mounted drum mix asphalt mixing plant
Components drum asphalt mixers 40t/h mini mobile asphalt mixing
plant:
“One-trailer-mounted” drum mix asphalt mixing plant is mainly
composed of cold supply system, belt feeder, drying and mixing
drum, burning system, dust collection system, finished products
storage bin, bitumen tank and control system.
| One-trail-pulled drum mixer mobile asphalt plant main parameters |
| Model | ZAP-C20M | ZAP-C40M | ZAP-C60M | ZAP-C80M | ZAP-C120M | Note |
| Rated output(T/H | 20 | 40 | 60 | 80 | 120 | 5% water content, standard condition |
| Oil consumption(tons/hour) | 7 or less | 7 or less | 7 or less | 7 or less | 7 or less | light oil/heavy oil/fuel gas |
| Total power(KW) | 50 | 69 | 110 | 150 | 210 | Standard configuration |
| Dimension(L×W×H)m | 15.5×3.1×4.48 | 17.9×3.1×4.48 | 21×3.1×4.48 | 21×3.1×4.48 | 21.5×3.1×4.48 | |
| Amount of axles | 2 | 2 | 2 | 2 | 3 | |
| Volume of cold feed bins | 4.5m³ | 2×4.5m³ | 3×4.5m³ | 3×4.5m³ | 4×4.5m³ | Optional |
| Size of drum(Diameter×Length) | ∅1.2m×3.8m | ∅1.2m×5.3m | ∅1.5m×7m | ∅1.5m×8m | ∅1.8m×8.5m | |
| Driving power of drum(Kw) | 11 | 15 | 22 | 22 | 7.5×4 | |
| Type of dust collector | Bag house filter | Other types are also optional |
| Filter area | 115m² | 150m² | 210m² | 260m² | 340m² | |
| Power of induced draft fan(Kw) | 11 | 18.5 | 30 | 30 | 55 | |
| Volume of finished product silo(m³) | 1 | 1 | 1.5 | 1.5 | 2 | |
| Operation methods | Manual/Automatic | |
| Type of mixing | Continuous type | |
| Bitumen heating way | electrical heating,thermal conductin oil heating, direct heating | Optional |
| Measurment of bitumen | flow measurement | |
| Temperature of finished asphalt(℃) | 130℃~160℃ | |
SUMMARY:
- “one-trailer-mounted ” continuous drum mix asphalt plant is
optimized and redesigned based on our stationary continuous asphalt
mixing station and semi-mobile continuous asphalt mixing station.
- “one-trailer-mounted ” continuous asphalt drum mixing plant
realizes the high integration of asphalt plant, and one transport
trailer can realize all the functional requirements of the asphalt
mixing station (filling, drying, mixing, storage of finished
products, operation), which meets the user's requirements for fast
installation, fast transition, and rapid production.
- Up to now, our “one-trailer-mounted ” continuous asphalt mixing
plant” has been exported to Europe, Africa, North America etc. The
convenience of fast transportation, transfer, and rapid
recommissioning greatly saves the costs and improves the
construction efficiency.
Advantages of ZOOMLINE Machinery

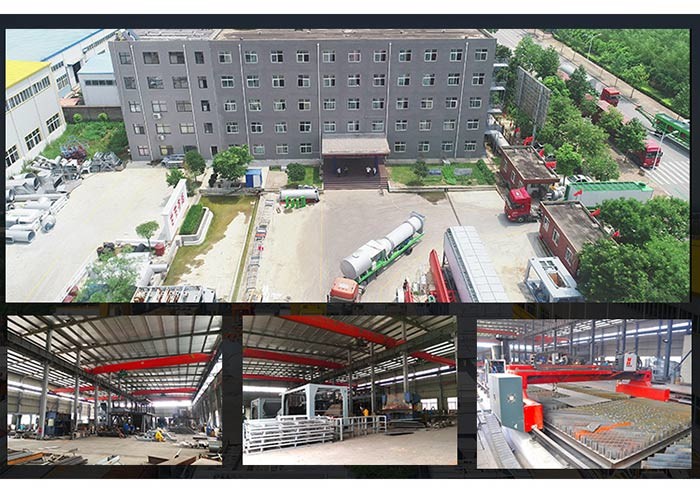

• Continuous 20 years experience in mechanical processing, nearly
15 years asphalt mixing plant specializing in the producing and
construction experiences. More than 300 sets asphalt plants are
located around the world.
• Supply various kinds of asphalt recycling solutions, cold
recycling, heat recycling, and recycling material crushing,
screening etc. Make the resource recycling, to solve the pollution
at the same time "turning waste into treasure."
• Perfect product series models, to meet the different construction
requirements.
• Each component of the equipment comes from well-known suppliers.
Stable quality, long working life. More importantly, the
installation size to meet international standards, easy to replace.
After-sales service
1. Strong after-sales service team
We have a professional after-sales service team with advanced
technology wich can provide you timely and reliable guarantee for
all the after-sales service.
Transport----Basic site handle----Equipment
installation-----Equipment debugging----Staff training---Technical
support----Spare parts supply
Provide tracking service to your equipment.
2. Perfect accessories gallery
Machinery accessories gallery: kind of standard components, bears,
reducer, motor, convey belt, axle and other machined part.
Electrical accessories gallery
3. Rapid response
We have kinds of communicate method, we can handle your problem the
first and give you feedback within 24 hours no matter which method
you choose.
