Road building soil mixing equipments stabilized soil batching plant
Cement stabilized soil mixing plant is widely used in the
stabilized soil construction of highway, urban road, plaza and
airport. It is suitable for continuously mixing different grade
limes, stones, cement stabilized soil and industrial wastes to
produce finished stabilized soil.
Main features of stabilized soil batching plant
1. It adopts modular design and is easy to transport. And batching
system adopts frequency electronic weighing to make accurate
weighing.
2. Filler supply system equips dual dust removal system and
constant flow bin, which makes the cement weighing more accurate
and unpolluted.
3. It adopts double continuous shaft mixer, featuring chain drive,
mixing evenly and easy maintenance.
4. Manual and automatic control system can be options. IPC ensures
the safe running of the plant.
Main components

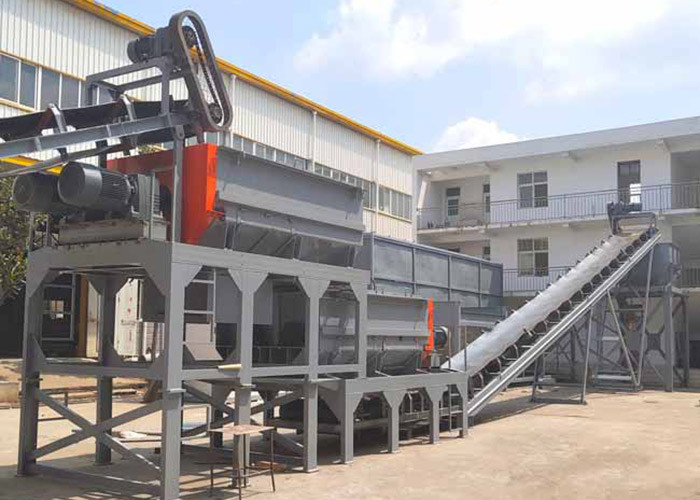

Cement stabilized soil mixing plant: It is composed of aggregate
bin with weighing system, filler bin with weighing system, mixing
system, finished material conveyer, finished material storage bin,
control system. It can be divided into stationary and mobile type.
Aggregate system
The grading unit is modular, easy and fast to install; the material
breakage alarm at the discharge port, the material bin shortage
alarm, and the automatic bin vibration, smooth feeding; the
electronic belt scale continuous weighing measurement, motor
frequency conversion speed regulation, high measurement accuracy;
practical The skirt belt ensures that the sensor data is real and
effective, and the measurement is more accurate.
Filler system
The vertical cement silo is equipped with an arch-breaking device;
the continuous material level gauge displays the material level in
the control room; the conveyor is weighed first and then weighed,
and the electronic screw scale weighing system is used to realize
computer closed-loop control; the powder steady flow small silo
makes the cement metering more stable and reliable.
Water supply system
Automatic control of the water level of the water tank, alarm
prompt for the upper and lower limits of the water level, and can
be interlocked with the water supply pump; the frequency conversion
ratio is used to compare the water supply system, the water supply
is accurate, energy saving, and the work is reliable.
Finished material storage bin
Pneumatic door opening mechanism, stable operation and low failure
rate; optimized storage capacity can not only meet the convenience
of operation, but also effectively prevent segregation; storage
wall vibrator to prevent the accumulation of corners and corners
when discharging.
Control System
Containerized control room, with good thermal insulation
performance, beautiful appearance, good sealing performance,
convenient and fast installation and transportation; industrial
computer centralized control, full Chinese dynamic process
operation interface, beautiful and generous display and intuitive
display; manual, semi-automatic and full-automatic control mode
freely switch; On and off, with fault detection and alarm
functions; various parameter settings are complete, real-time
reports and historical reports are easy to print.
| Model number | (Y)WBC200 | (Y)WBC300 | (Y)WBC400 | WBC500 | WBC600 | WBC700 | WBC800 |
| Rated output(T/H) | 200 | 300 | 400 | 500 | 600 | 700 | 800 |
| Installed power(KW) | 71 | 88 | 120 | 140 | 148 | 168 | 191 |
| Aggregate type | 3 | 3 | 4 | 4 | 5 | 5 | 6 |
| Feed particle size | ≤45 | ≤45 | ≤45 | ≤60 | ≤60 | ≤60 | ≤60 |
Finished-Product Silo capability
(M3) | 4 | 4 | 7 | 7 | 7 | 8 | 8 |
| Measuring accuracy | Aggregate | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Cement | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Water | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Measuring | Aggregate | Electronic belt scale |
| Cement | Electronic screw scale |
| Water | Flow meter | Flowmeter | Flowmeter | Flowmeter | Flowmeter | Flowmeter | Flowmeter |
| Occupied area(mxm) | 35x19 | 35x19 | 46x22 | 48x22 | 52x22 | 52x26 | 58x29 |
